Description
| Model | Unit | GT25W | GT30W | GT40W | GT50W |
| Operate Mode | / | 4in One（Welding、Cleaning、Cutting、Melting） | |||
| Operating Voltage | V | 1PH AC220V±5% | |||
| Frequency | Hz | 50/60 | |||
| Power | W | 800 | 1200 | 1500 | 2000 |
| Fiber Length | M | 10 | |||
| Laser Output Connector | / | QBH | |||
| Central Wavelength | NM | 1080±5 | |||
| Cooling Method | / | Air Cooled/Water Cooled | |||
| Weld Seam Requirement | MM | ≤1.6 | |||
| Working Temperature | ℃ | -20 ~ + 45 | |||
| Humidity | % | ≤70%@40℃；≤90%@20℃ | |||
| Working Shielding Gas | / | Argon/Nitrogen | |||
| Welding Wire Diameter | MM | 0.8,1.0,1.2,1.6,2.0 | |||
| Max-Welding Thickness | StainlessSteel | 2.5 | 3 | 4.5 | 5.0 |
| Carbon Steel | 2.5 | 3 | 4.5 | 5.0 | |
| Aluminum | 2 | 3 | 3.5 | 4 | |
| Brass | 1.5 | 2.5 | 3 | 3.5 | |
| Red copper | 1 | 1.5 | 2 | 2.5 | |
| Rust Removal Width | MM | ≤120mm | |||

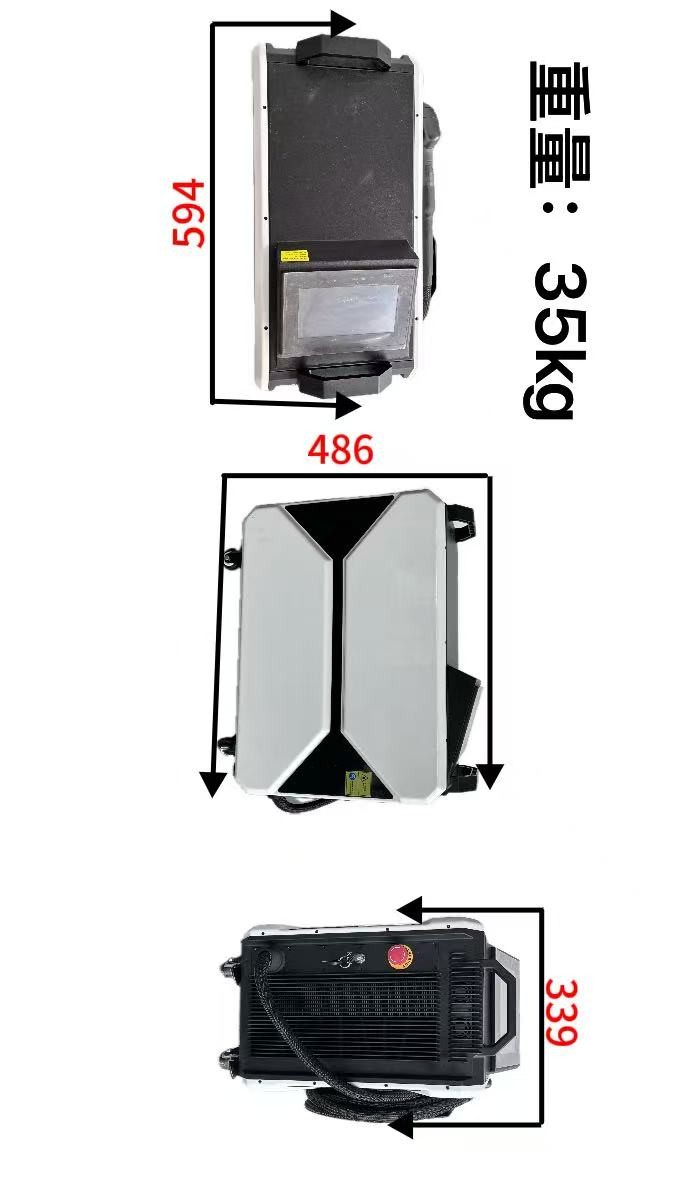

| Dimensions | MM | 500mm*300mm*440mm | 606mm*340mm*550mm | 606mm*340mm*550mm | 630mm*493mm*660mm |
| Weight | KG | 25 | 30 | 35 | 45 |
| Applicable Welding Materials | Carbon steel, Aluminum, Galvanized sheet, Stainless steel, etc | ||||
| Note: Welding parameters are for reference only. Actual parameters may deviate from the above values due to variations in welding wire diameter, weld seam width and other environmental and process factors. | |||||
